Home of Cluso's MultiBladeProps
Single Board Computer using multiple Parallax Propeller Microprocessor chips
Assembly Instructions
Click on photo to enlarge.
Triblade SBC PCB Assembly Instructions and FAQ
TriBladeProp Specification PDF (Specifications subject to change)

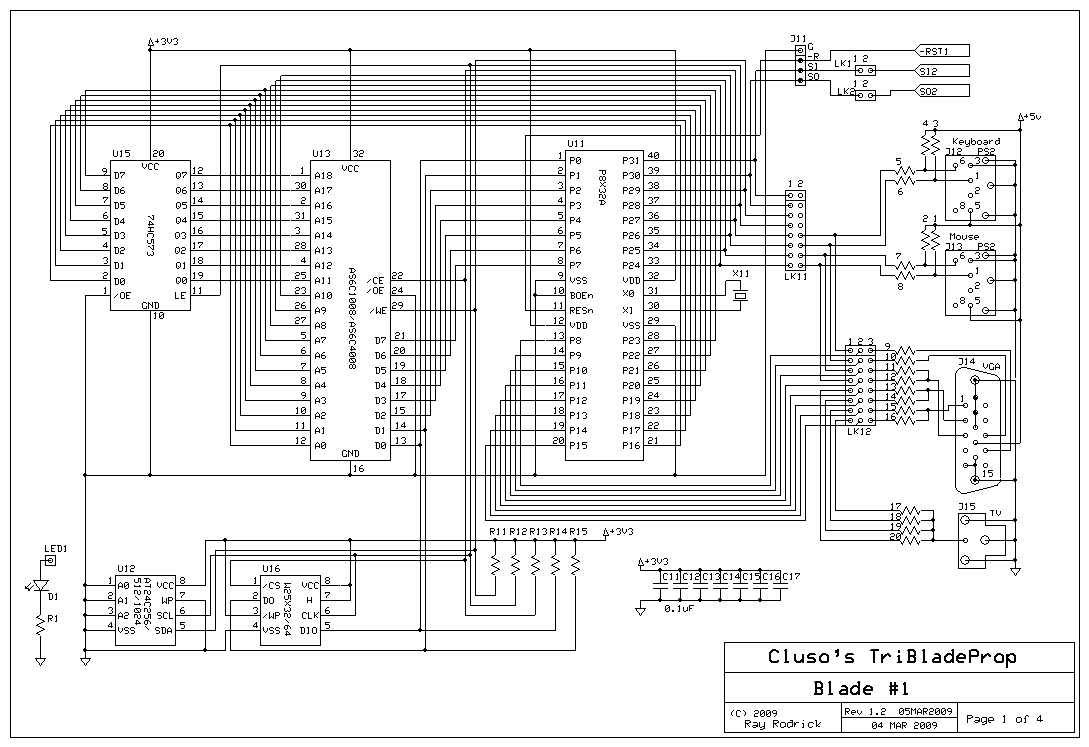

TriBladeProp schematic page 1/4
TriBladeProp schematic page 2/4

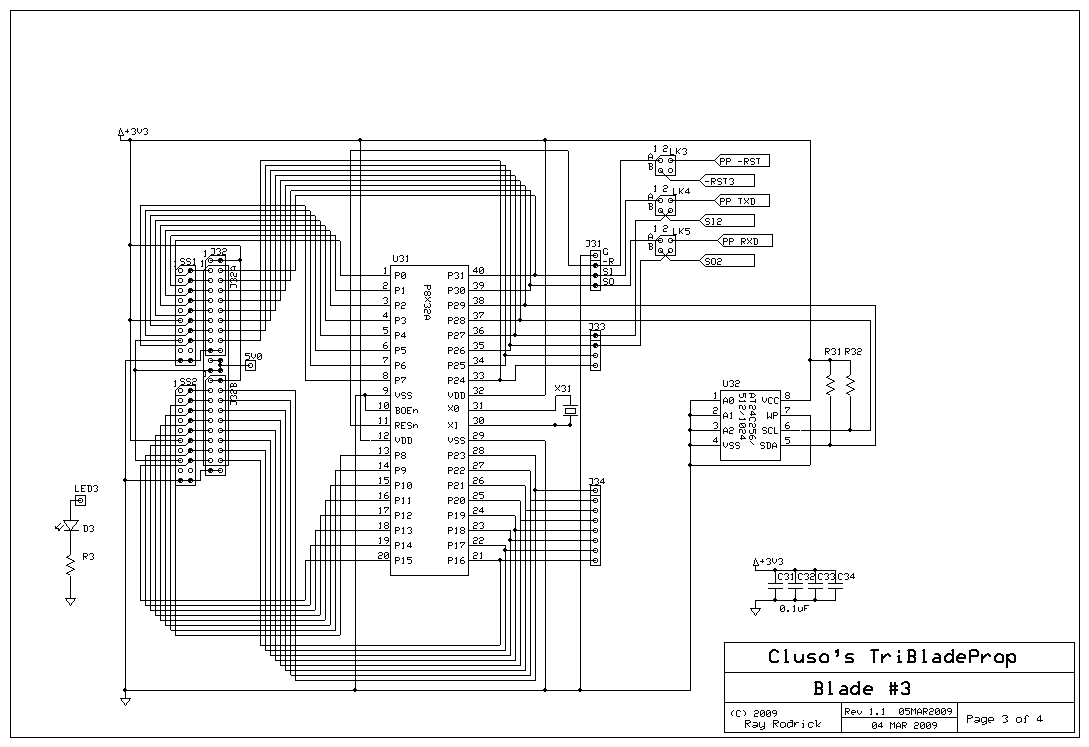

TriBladeProp schematic page 3/4

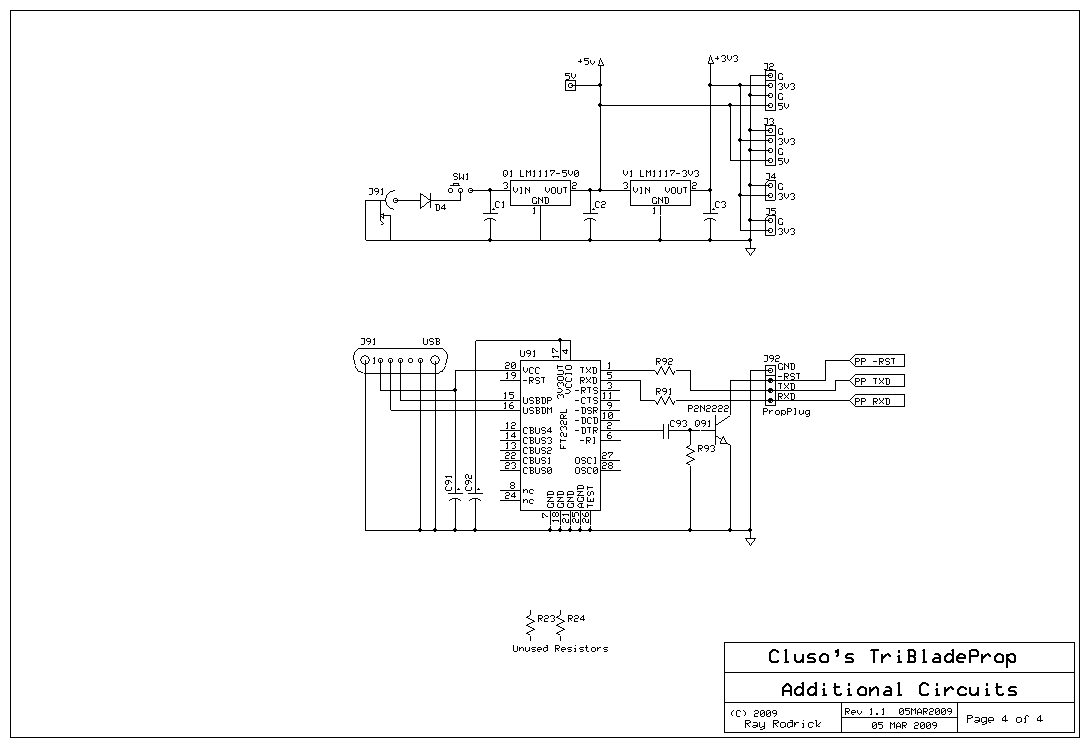

TriBladeProp schematic page 4/4
Errata Rev A1

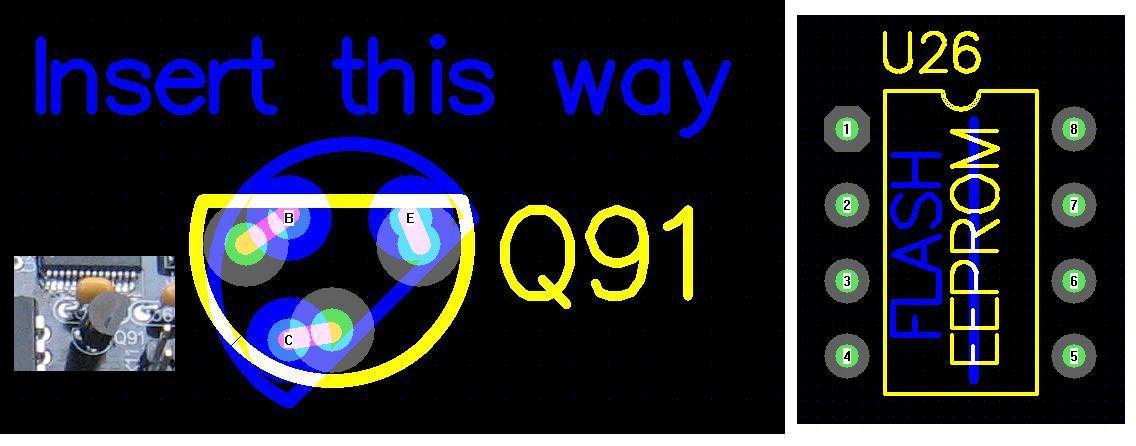

PCB Errata Rev A1 picture 1/3
PCB Errata Rev A1 picture 2/3
PCB Errata Rev A1 picture 3/3
Click on photo to enlarge.
See the Parallax Forums for further discussion on these pcbs...

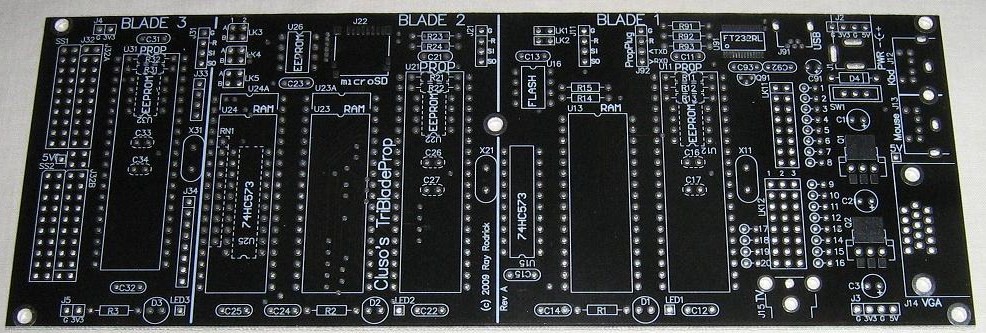

Single Board Computer - 3 Propeller ICs and the TriBladeProp PCB

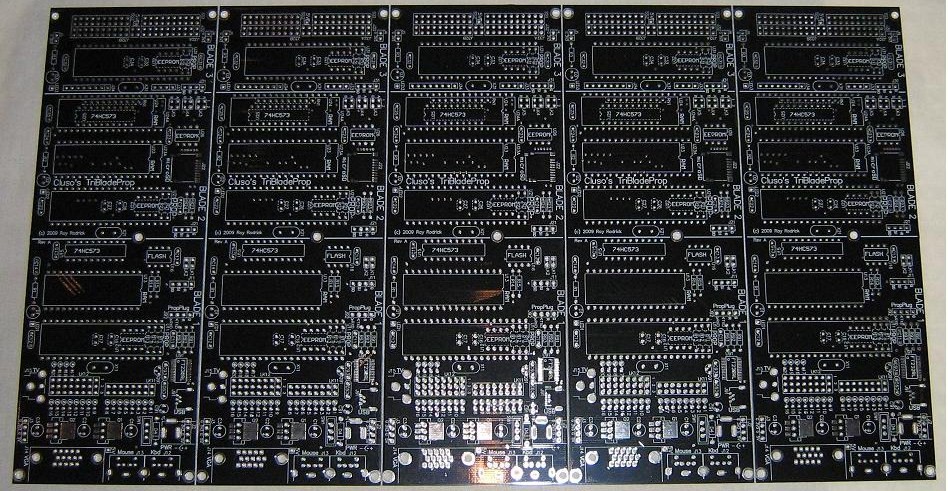

TriBladeProp PCB: Uses 3 Propeller ICs for a Single Board Computer (SBC)
ZiCog a Zilog Z80 emulator (and CP/M) Includes implementation on the TriBladeProp PCB.
